In civil engineering, accurate volume calculation of stockpiles is essential for budgeting, logistics, and site planning. At Aidedo, we leverage AutoCAD Civil 3D to deliver fast, reliable, and highly accurate stockpile volume calculations for our clients. Here’s how we do it:

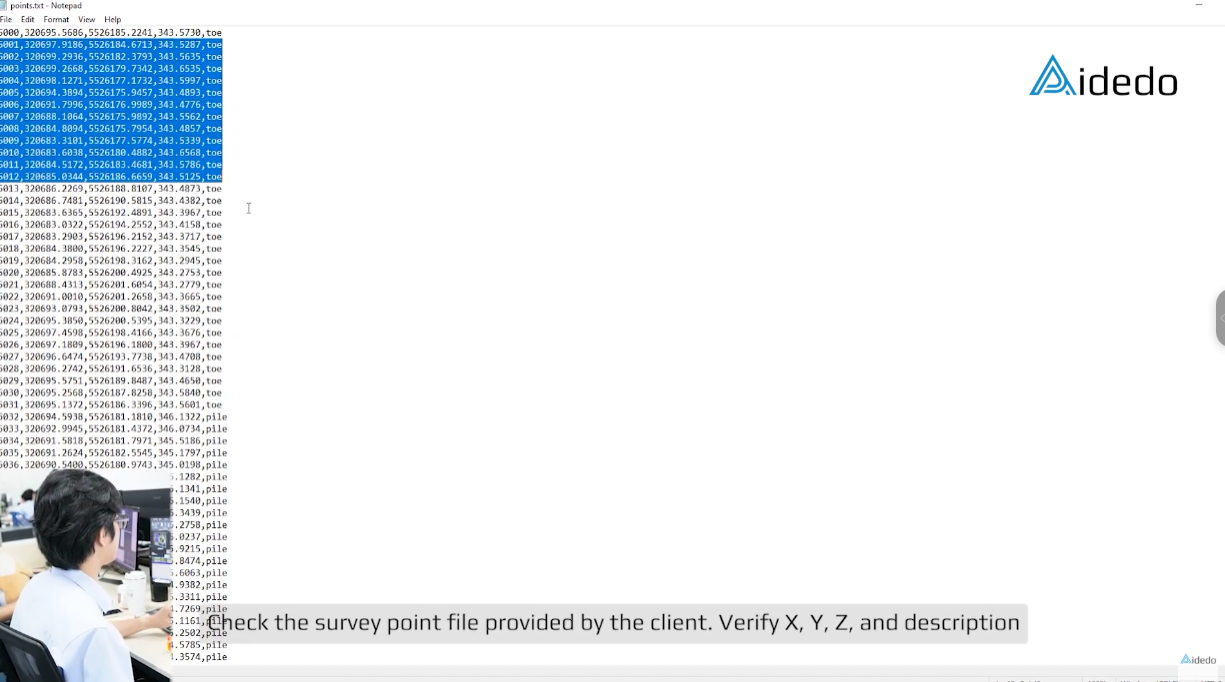

Step 1: Verify Client Survey Data

Before beginning, we perform a meticulous review of the point data provided by the client. We ensure all X, Y, Z coordinates and point descriptions are accurate and usable. This step is crucial to avoid inconsistencies later in the process.

how to accurately calculate stockpile volume using civil 3d a step by step workflow 10

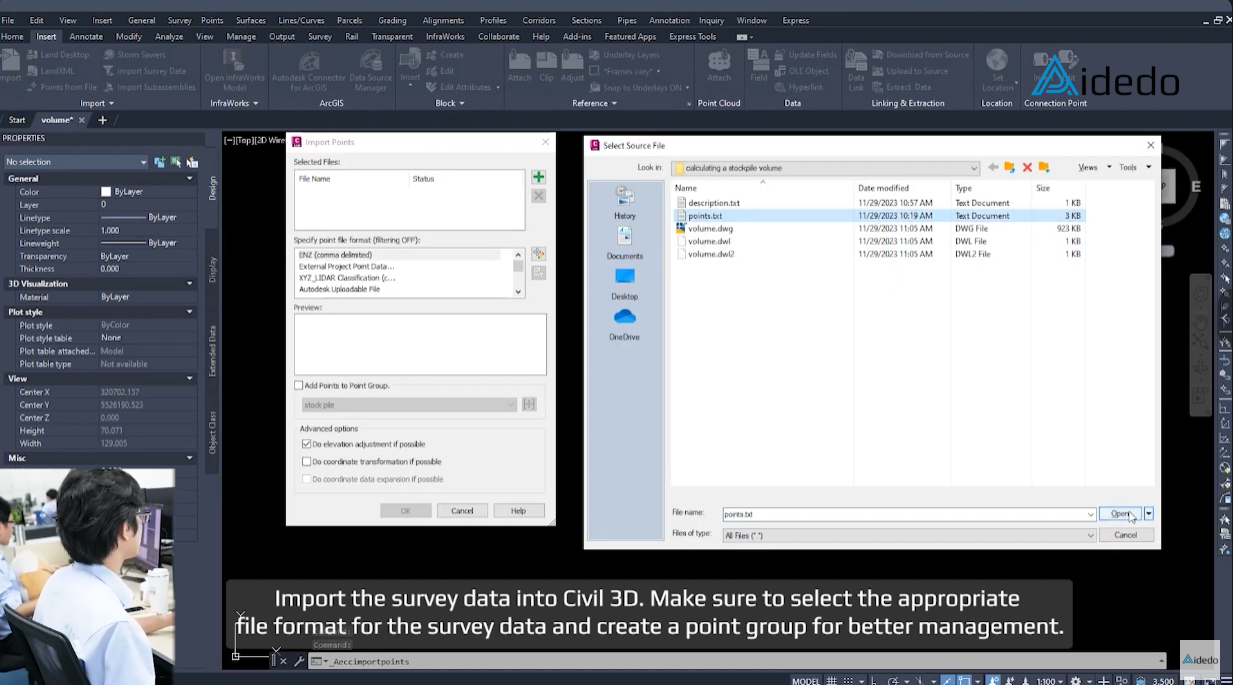

Step 2: Import Data into Civil 3D

We import the point data into Civil 3D, selecting the correct file format (typically CSV or TXT). We then group points into a Point Group for efficient layer management and visibility control throughout the workflow.

how to accurately calculate stockpile volume using civil 3d a step by step workflow 3

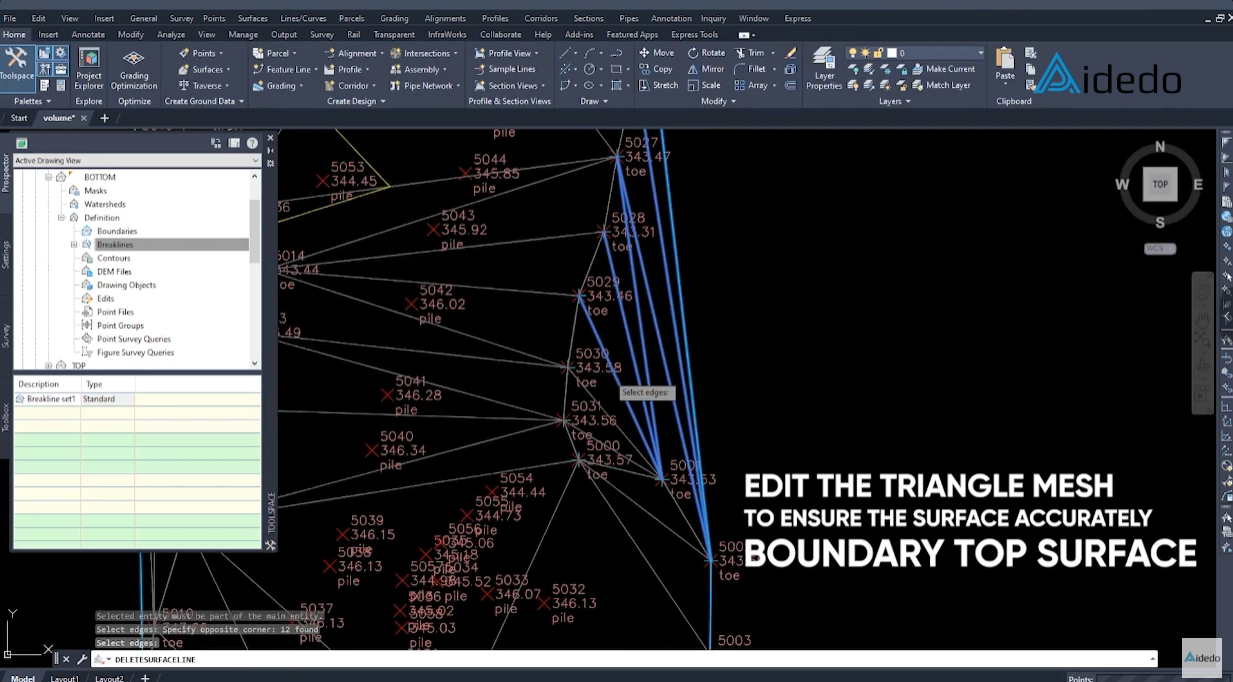

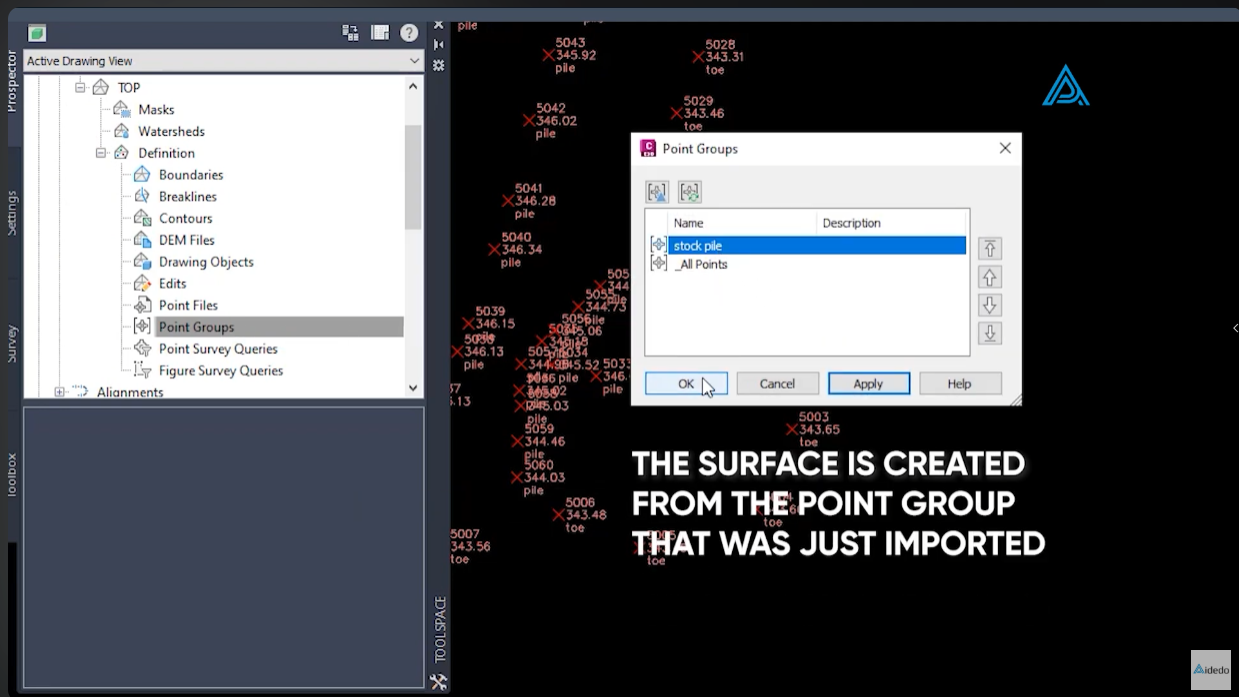

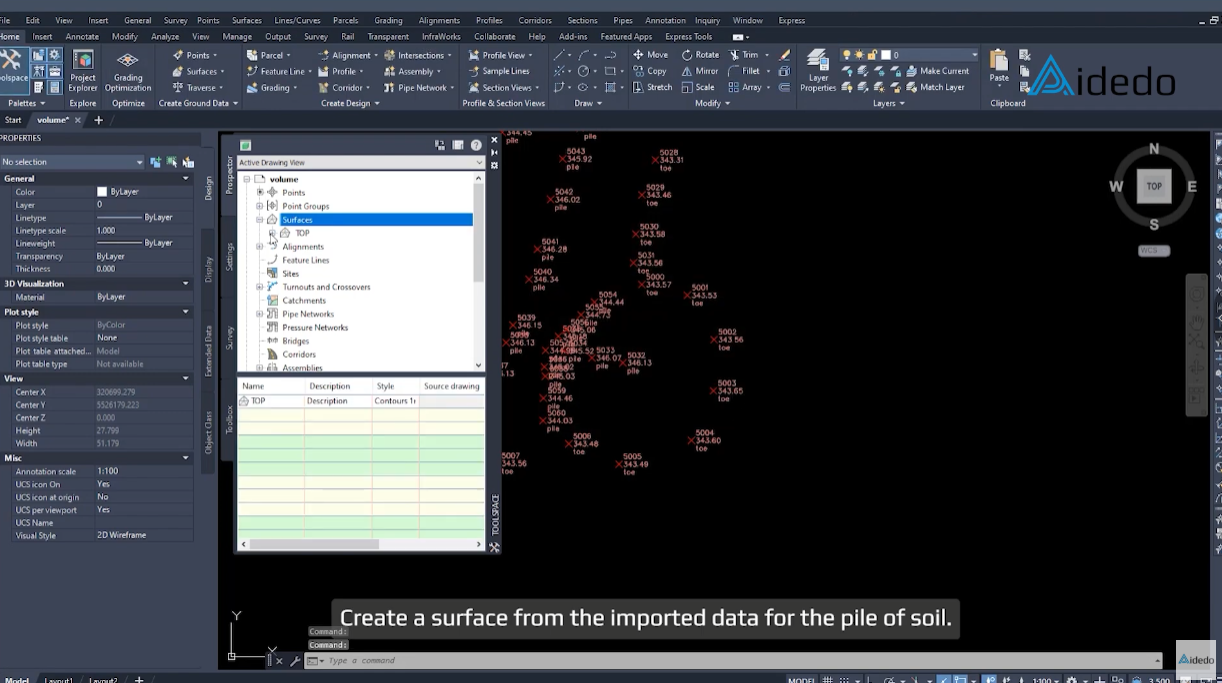

Step 3: Create the Top Surface

Using the imported point data, we generate a 3D surface representing the existing topography of the stockpile. This surface models the real-world shape and elevation of the soil or material pile.

how to accurately calculate stockpile volume using civil 3d a step by step workflow 6

how to accurately calculate stockpile volume using civil 3d a step by step workflow 1

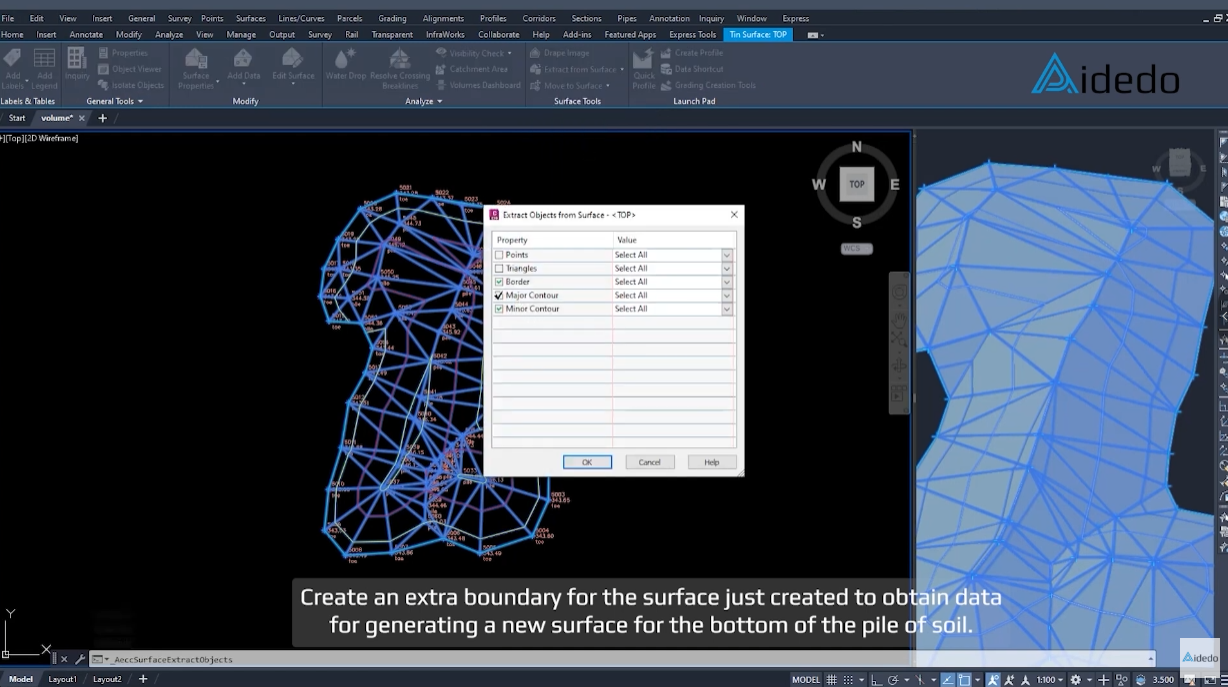

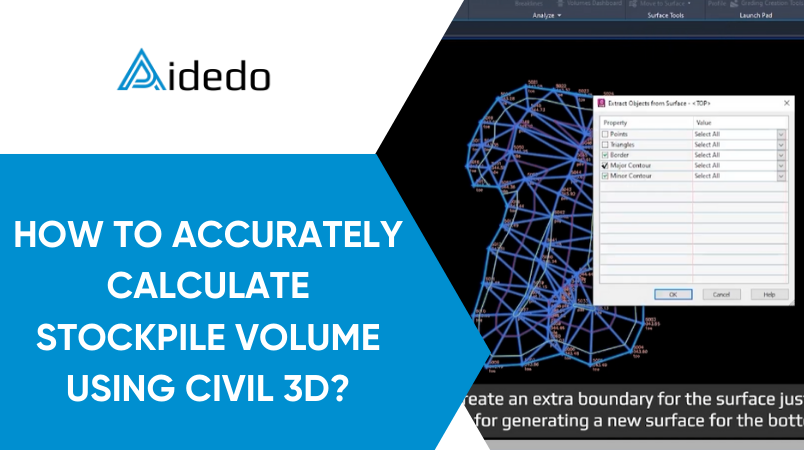

Step 4: Define Boundary for Bottom Surface

To calculate volume, a second surface representing the bottom of the stockpile is needed. We define a closed boundary around the pile based on site limits or client input, which serves as the foundation for the next step.

Read More:  Topographic Survey Drafting Outsourcing Service

how to accurately calculate stockpile volume using civil 3d a step by step workflow 9

Step 5: Generate the Bottom Surface

A flat or graded bottom surface is then created using the defined boundary. This represents the theoretical ground level before the stockpile was placed, and serves as a reference plane for volume computation.

how to accurately calculate stockpile volume using civil 3d a step by step workflow 5

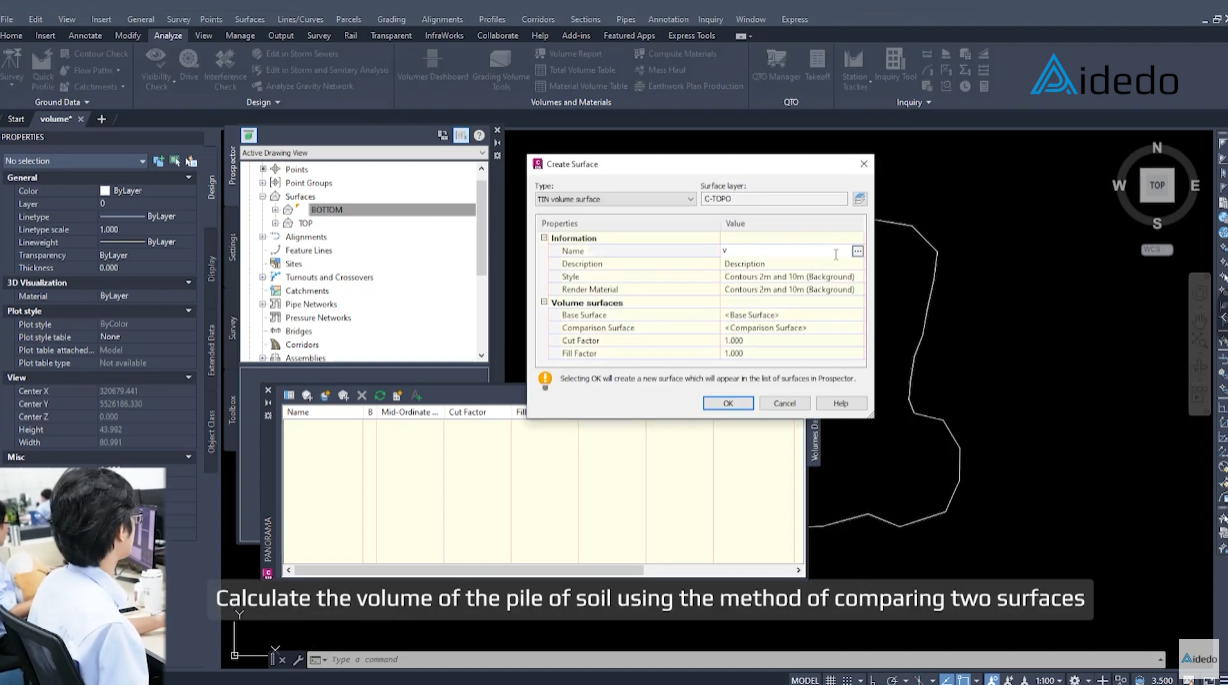

Step 6: Volume Calculation Between Two Surfaces

We use Civil 3D’s built-in Volumetric Surface comparison tools to calculate the exact Cut/Fill between the top surface (actual pile) and bottom surface (original ground). This delivers a precise volume of material in cubic meters or cubic feet, depending on client specifications.

how to accurately calculate stockpile volume using civil 3d a step by step workflow 7

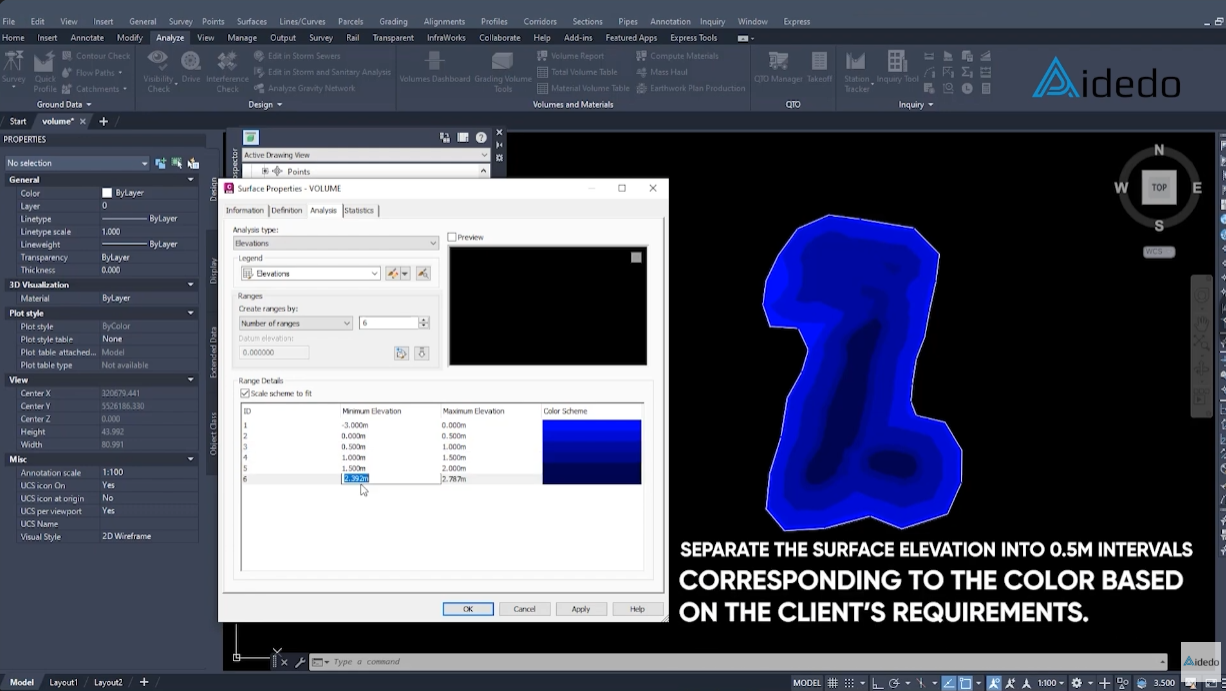

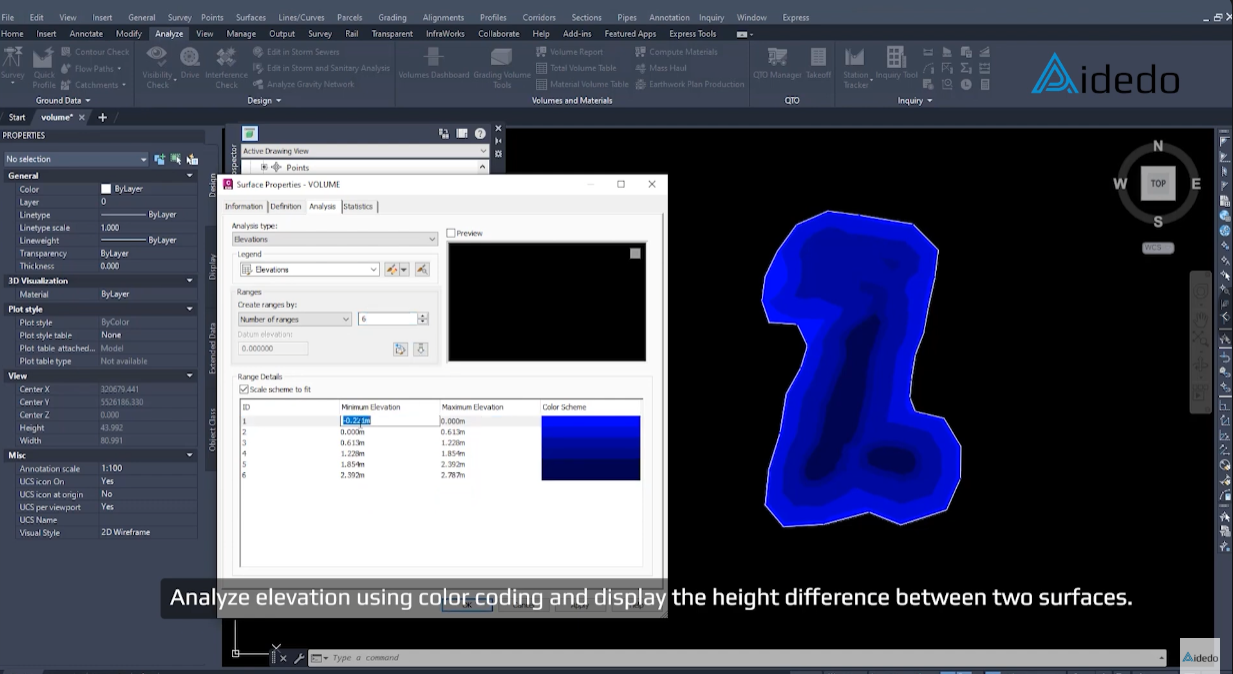

Step 7: Elevation Analysis and Visualization

We apply color-coded elevation analysis to visually differentiate height ranges across the pile. This helps clients understand the distribution of material and identify any high or low points for further action.

how to accurately calculate stockpile volume using civil 3d a step by step workflow 2

how to accurately calculate stockpile volume using civil 3d a step by step workflow 4

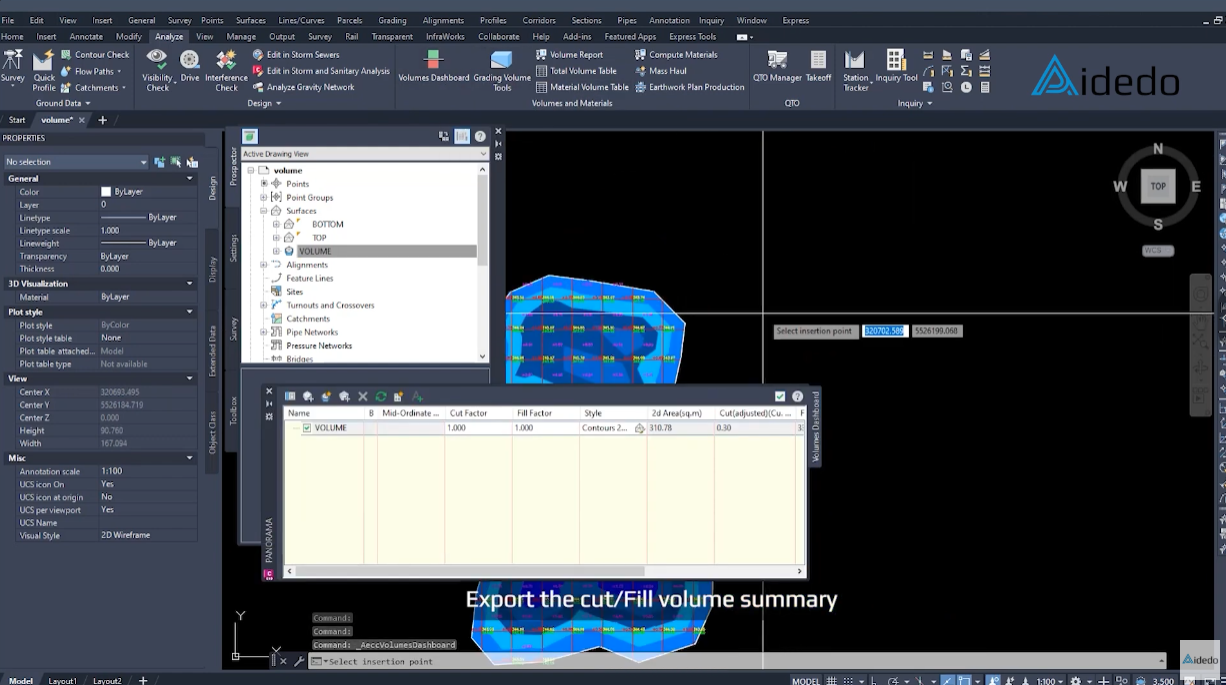

Step 8: Export Volume Report

Finally, we export a detailed Cut/Fill volume summary. This report is formatted for client use, ideal for construction planning, quantity takeoffs, or regulatory submissions.

how to accurately calculate stockpile volume using civil 3d a step by step workflow 8

Why Choose Aidedo for Stockpile Volume Calculation?

  • Fast Turnaround: With a team of 50+ engineers, we can deliver most stockpile calculations within 24 hours.
  • High Accuracy: We utilize Civil 3D’s advanced tools, ensuring industry-standard accuracy.
  • Global Standards: Our process complies with US, UK, and Australian engineering practices.
  • Scalable Services: Whether one pile or hundreds, we handle all volumes with consistent precision.
