PLOT PLAN SURVEY DRAFTING SERVICE

• Have you ever outsourced Plot Plan Survey Drafting Services but ended up spending too much time on revisions because the partner couldn’t draw to scale, misaligned the layout with zoning regulations, provided inaccurate setbacks, or failed to follow the layer standards, block symbols, and technical notes that your company uses?
• Have you expected that outsourcing would help reduce the workload for your in-house drafting team, only to find that it took even more time for checking, feedback, and error correction due to the drafting provider’s lack of practical experience or poor understanding of specialized requirements?
• Are you running a Land Survey company that operates on a project-by-project basis, with a constantly fluctuating workload and the pressure to complete documents on time for submission to the city, county, or other reviewing agencies?
• Or are you looking for a partner that provides Plot Plan Survey Drafting Services who can get it right the first time, helping you increase productivity without the extra cost of hiring, training, or investing in new technical software to expand your in-house team?
• Or perhaps you need a drafting team that functions as an extension of your internal engineering group ready to take on projects, work closely with your project manager, and deliver on time even during your busiest periods?

From all these challenges, Plot Plan Survey Drafting Services have moved beyond being a temporary solution they have become a strategic operational approach that helps Land Survey companies offload workload while maintaining technical accuracy, optimizing resources, and staying on schedule under all real-world conditions.

Who is the Plot Plan Survey Drafting Service suitable for?

The first group of clients suitable for Plot Plan Survey Drafting Service includes Land Survey companies that have previously or are currently outsourcing drafting services but are not truly satisfied with their existing partners. These are clients who understand the value of outsourcing but have had experiences that make them hesitant to continue long-term collaboration. Common technical issues include plot plan drawings with incorrect setbacks, misrepresented zoning layouts, or non-compliance with layer standards. Poor communication, delayed responses, or lack of initiative during the revision process also impact project timelines and reduce trust in the outsourcing partner. For this group, Plot Plan Survey Drafting Service offers an opportunity to restore confidence in collaboration through a professional workflow, strong technical capability, and high adaptability to each company’s unique standards.

This service is also highly suitable for small to medium-sized Land Survey companies those with limited staffing, fluctuating workloads depending on the season or project cycle, and frequent pressure to submit documents on time. When project volume suddenly spikes or deadlines are tight, hiring more staff or scaling up the internal system becomes infeasible. Plot Plan Survey Drafting Service allows these companies to expand their technical capacity instantly without spending time on training or investing in additional specialized software. They can simply provide basic input data, even in rough form templates, and receive complete drawings that meet technical specifications and zoning standards—ready for submission.

For larger Land Survey companies with well-established internal systems and dedicated engineering teams, Plot Plan Survey Drafting Service still presents a strategic option. Instead of diverting in-house resources to repetitive tasks or quick-turnaround requests, they can use the service as an extension of their drafting team. The service is implemented using the company’s existing templates, layer conventions, naming systems, and management procedures, ensuring consistency across all deliverables. This is not only a way to maintain quality but also a solution that allows the internal team to stay focused on more critical, highly specialized tasks.

In addition, Plot Plan Survey Drafting Service is particularly well-suited for solo engineers or very small teams running their own companies. These professionals prefer not to deal with personnel management, recruitment, employee benefits, or legal paperwork. What they need is a fast, straightforward service with clear communication one that can accept requests at any time and deliver drawings on schedule. For them, Plot Plan Survey Drafting Service isn’t an unfamiliar solution; it’s a practical tool that enables flexibility while maintaining professionalism in every project.

The value companies gain from outsourcing Plot Plan Survey Drafting Services

Outsourcing Plot Plan Survey Drafting Services is not simply about transferring a portion of technical work it is a strategic way for companies to restructure resources to optimize productivity, manage risks, and accelerate project execution without compromising internal stability. When Land Survey companies choose to outsource the right way, what they truly gain is not just a drawing file, but positive outcomes across their entire technical operations chain.

The first key value is increased work processing speed without having to invest in additional infrastructure or personnel. When drafting demands spike suddenly, companies often face two options: accept project delays or hire more staff—both of which come with fixed costs and long-term risks. Outsourcing enables companies to handle temporary workloads efficiently, allowing them to respond flexibly to demand fluctuations without altering their organizational structure. Instead of spending days or weeks recruiting, training, and allocating resources, companies can start projects within 24 to 48 hours after submitting a request.

Secondly, outsourcing helps standardize technical quality without the overhead of internal supervision. A plot plan drawing not only needs to be geometrically accurate but must also comply with zoning codes, setback requirements, easements, presentation formats, and layout specifications mandated by local authorities or clients. An experienced outsourced drafting team familiar with international standards and multiple markets will adhere to these requirements automatically, without the need to double-check every detail. This significantly reduces revision time, back-and-forth feedback, and the risk of rejected submissions.

Another value comes from allowing companies to refocus their internal resources on more strategic tasks. In-house drafting for every plot plan can consume valuable time from engineers especially when their expertise is more impactful in key areas such as field surveys, client engagement, GPS data processing or technical reporting. By outsourcing drafting, engineers gain the time and space to focus on where they deliver the most value. This is how companies boost productivity not by doing more, but by doing the right things.

In addition, companies gain better cost and cash flow control when outsourcing. Instead of committing to upfront investments in licensed software, training programs, workspace, or management systems, companies only pay for the tasks they need, when they need them. This is particularly beneficial for firms with seasonal or irregular project volumes. Outsourcing becomes a flexible financial management tool: costs are incurred only when demand arises.

Lastly, the most subtle but arguably most critical value is operational proactiveness. With a reliable drafting partner on hand ready to take on requests, deliver technically accurate drawings, and meet deadlines companies are no longer reactive to unexpected situations. Tight deadlines, surprise submission schedules, or last-minute client revisions can all be handled without reorganizing the entire internal system. This level of control directly enhances reputation, improves client retention, and strengthens competitiveness in a rapidly changing market.

Aidedo,  your trusted partner for Plot Plan Survey Drafting Services

Throughout its operations, Aidedo has partnered with hundreds of Land Survey companies in the U.S, Australia, Canada, Ireland, Scotland, and other developed markets to deliver Plot Plan Survey Drafting Services with consistency, accuracy, and efficiency. With thousands of drawings completed, we not only possess strong technical knowledge but also deeply understand how each company operates and coordinates internally allowing us to tailor our approach to fit each real-world situation.

Aidedo is more than just a service provider fulfilling drawing requests. we are a capable technical partner, built on a foundation of deep expertise and extensive hands-on experience in delivering Plot Plan Survey Drafting Services across multiple international markets. As of early 2025, we have successfully completed over 10,000 international projects, served more than 100 loyal clients, and operate with a team of 50+ full-time engineers. Our team is proficient in specialized software including AutoCAD, Civil 3D, 12D Model, Carlson, HydroCAD, Infraworks, Vehicle Tracking, and other advanced drafting tools.

Aidedo has proven experience in handling complex technical requirements in Plot Plan Survey Drafting Services, from accurately representing setbacks, zoning, easements, driveways, and septic tanks to integrating geolocation data from original survey drawings. All drawings are executed based on each client’s unique layer systems, block symbols, and layout standards, ensuring consistency and technical precision throughout the entire documentation package submitted to regulatory authorities.

What sets Aidedo apart in Plot Plan Survey Drafting Services is not the number of drawings we produce, but our streamlined, transparent collaboration process and our ability to integrate seamlessly as an extension of your in-house engineering team. We don’t just deliver files we work closely with clients, respond promptly to revision requests, provide regular updates, and fully support internal review processes. This helps Land Survey firms significantly reduce supervision time, minimize errors, and maintain project stability at every stage.

We understand that in the Land Survey industry, no two clients are the same. Some may submit basic forms for quick plot plan drafts, while others require detailed drawings showing full utilities, grading slopes, zoning overlays, and legal boundaries to meet submission standards in highly regulated areas. With experience serving hundreds of clients with varying technical demands, Aidedo is able to adapt our workflow to each client group, development phase, and project type.

Whether you need to process 10 drawings in a week or 100 per month whether your request comes from an individual or a fully staffed technical department. Aidedo is committed to delivering Plot Plan Survey Drafting Services that meet the standard, stay on schedule, and perform exactly as you’d expect from a reliable extension of your drafting team.

Why you should choose Aidedo for Plot Plan Survey Drafting Services

When time is a pressure and accuracy is a mandatory standard, choosing a partner is not just about sending a drawing and receiving a product. Companies need a provider who understands the industry, understands internal workflows, and can integrate smoothly into their ongoing processes. That is why Aidedo is a worthy choice for implementing Plot Plan Survey Drafting Services.

Fast turnaround time is a strategic advantage that Aidedo brings to your companies. With headquarters located in Vietnam, where the time zone differs by 12 to 15 hours from countries like the United States, Canada, Australia, Ireland, and Scotland, we can process drawings outside of your working hours. You send the file at the end of the day, and by the time you start work the next morning, the drawing is already in your inbox. Taking advantage of the time zone difference not only speeds up the production cycle but also helps companies shorten project timelines without expanding staff or increasing working hours for the in-house engineering team.

Technical resources are the solid foundation that ensures service quality. Aidedo has a team of more than 50 full-time engineers who are not freelancers or part-time staff, but professionally trained in technical standards and international drafting practices for the Land Survey industry. These engineers are proficient in specialized software such as AutoCAD, Civil 3D, Carlson, 12D Model, and Infraworks. They also fully understand client technical requirements, can accurately read original survey drawings, and implement elements such as zoning, setbacks, easements, driveways, or utilities according to the specific requirements of each state and city. This ensures that the drawings you receive do not need repeated revisions and minimizes errors right from the first draft.

Companies do not need to invest in any additional resources. When working with Aidedo, you don’t need to purchase software, train new engineers, or pay for fixed costs such as office space or equipment. All infrastructure, operational processes, and dedicated personnel are already in place. You simply send your request, and Aidedo will take care of the entire technical workload as a true extension of your internal drafting team.

Data security is always given the highest priority. During the process of delivering Plot Plan Survey Drafting Services, all technical information, client data, and original drawings are managed using a secure storage system with clearly defined access controls. Aidedo’s team is required to comply with NDAs and internal confidentiality rules. No information is shared or used outside of the authorized scope, ensuring complete data protection throughout the collaboration.

Aidedo is one of the few providers with a clear refund policy to protect clients. If a drawing does not meet the agreed technical standards, we are willing to offer a 100% refund within 24 hours upon receiving formal feedback from the client. This commitment is not only a quality guarantee but also a reflection of Aidedo’s responsibility and professionalism in delivering every technical product.

Flexible collaboration is one of the key reasons why Aidedo has become a long-term partner for more than 100 companies in developed markets. We do not ask our clients to change their workflow to suit us. On the contrary, Aidedo proactively integrates into the processes that the client is already using. From custom layer systems, presentation templates, naming conventions, to block symbol settings and internal technical standards, Aidedo’s engineering team can adapt and execute precisely according to how you operate. This ensures consistency across drawings and saves you the time of retraining your partner for every new job.

Large-scale operational capacity is also a critical factor in ensuring long-term stability. With three offices operating in parallel in Ho Chi Minh City, a flexible allocation system between project teams, and an independent quality control process, Aidedo can handle multiple projects simultaneously while maintaining precision in every drawing detail. We have successfully completed over 10,000 technical projects in many countries and have a clear roadmap to expand our scale to handle larger workloads in the future without disrupting the client experience.

How does Aidedo perform Plot Plan Survey Drafting Service?

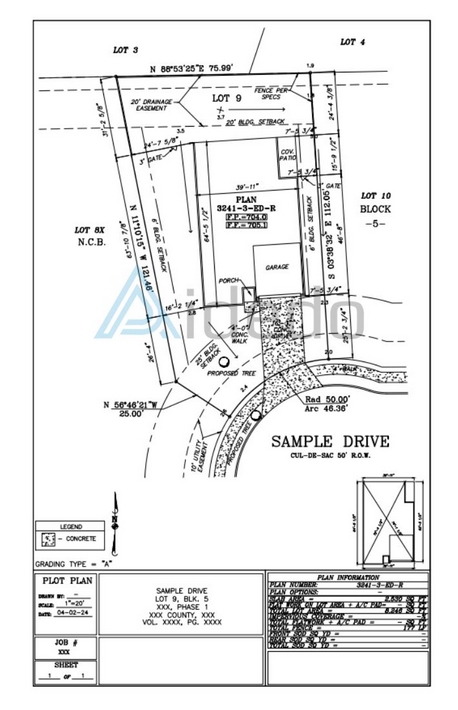

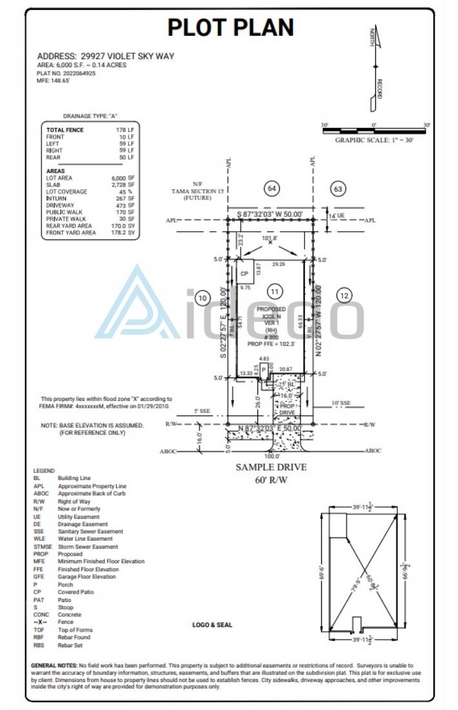

What is a Plot plan (House Location plan)? A Plot Plan is a 2D drawing that shows the footprint of the proposed building on a parcel of land, including distances to property lines, setbacks, easements, driveways, walkways, and other features. It ensures that the building complies with zoning and land use regulations.

In the Builder service package, the plot plan (also known as a house location plan) is often the first drawing to be prepared after the boundary survey and is followed by setback, foundation, form, final.

Step-by-step to complete a plot plan drawing

Step 1: Review Client provided data

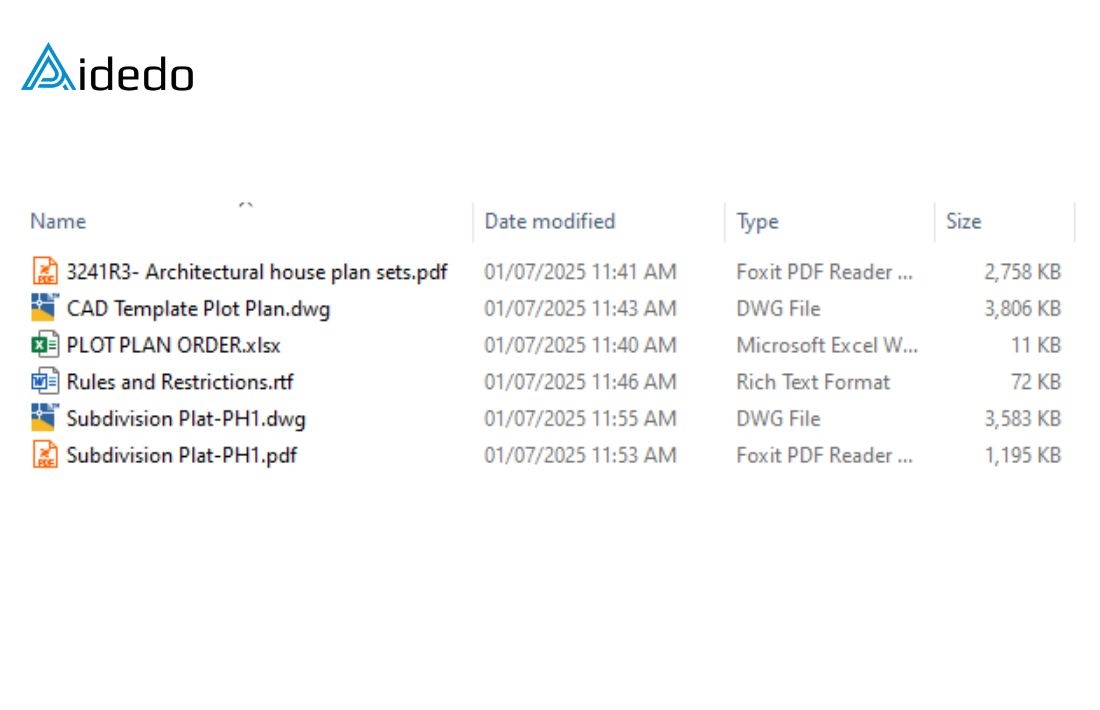

Before starting the drafting process, it’s essential to thoroughly check the documents submitted by the client. The typical package includes the following key items:

• Subdivision Plat (DWG or PDF format): This provides the official lot layout and legal boundaries within the subdivision.
• Architectural house plan sets (DWG, DWF, or PDF): These show the footprint, elevations, and layout of the proposed structure, which will be used to position the house on the lot.
• Rules and Restrictions from client (PDF, DOCX, or RTF): These may contain HOA guidelines, building setbacks, easements, or architectural controls that must be respected.
• Plot plan order information (PDF, XLSX, DOCX, or RTF): Includes community name, series, lot, block number, address, plan, elevation, garage information.

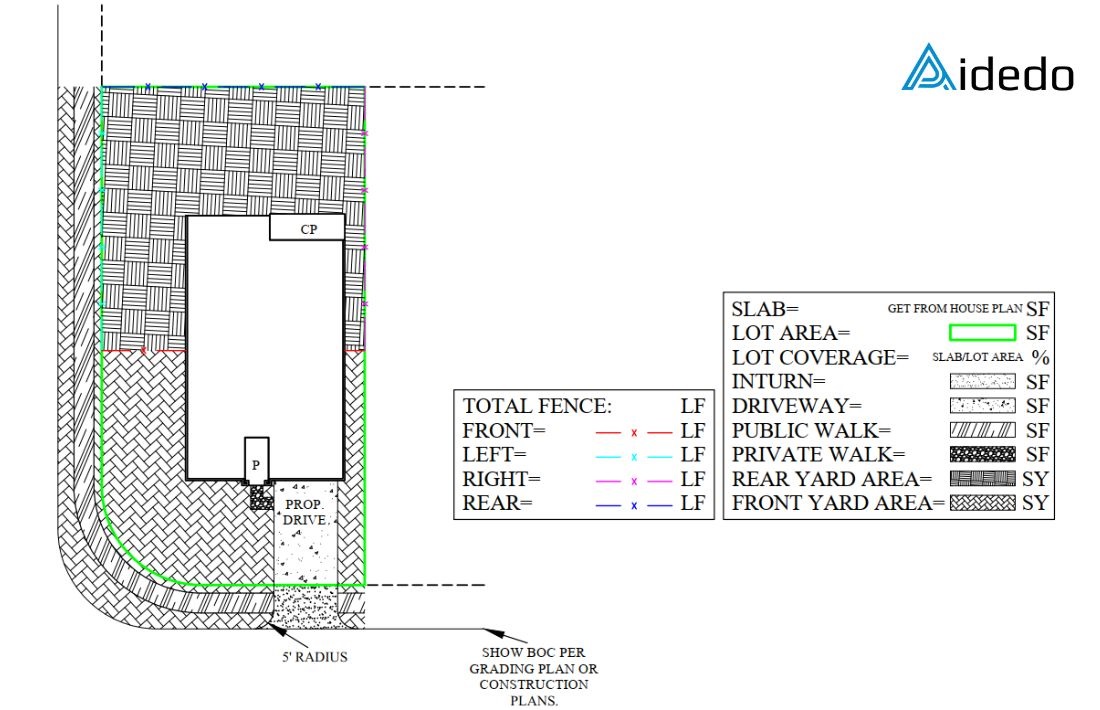

• CAD template for Plot Plan (DWG format): The standardized file we use to draft the Plot Plan according to the company or jurisdiction’s requirements.

Step 2: Carefully Review Client Documents to Confirm Lot Details

Thoroughly analyze the client’s submitted materials to accurately identify the following:

• Lot and Block Number: Cross-reference the Subdivision Plat with the order form to ensure working on the correct lot and block.
• Property Address: Make sure the address is correct. Sometimes it appears differently in the documents, so double-check to be sure.
• Selected Architectural Floor Plan: Go through the architectural drawings carefully to find out which house plan the client chose. Architects usually give several options, so it’s important to use the one the client actually picked.

Step 3: Extract and Prepare Subdivision Data

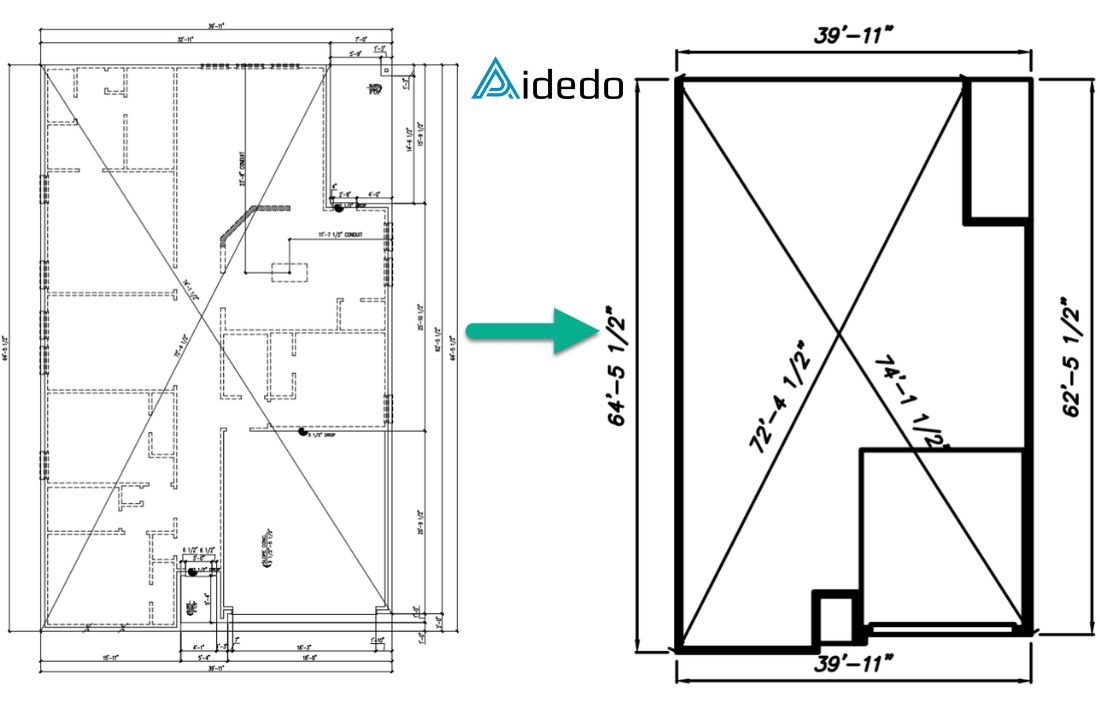

Copy the data from the subdivision CAD file and paste it into template drawing using original coordinates. From the lot’s property line, offset 30 feet in all directions and keep only the data within this area.

Then, convert all elements to match the client’s CAD standards, this includes layers, linetypes, colors, text height, and any other formatting required.

Step 4: Redraw the Building Outline

Redraw the outline of the building exactly as shown in the selected architectural plan.

Additionally, draft all required site features in their correct locations, including private walks, A/C pads, driveways, and any other elements per the client’s House Plan Specs. Calculate and label the area and length for each item as needed.

Step 5: Position the house and add required labels

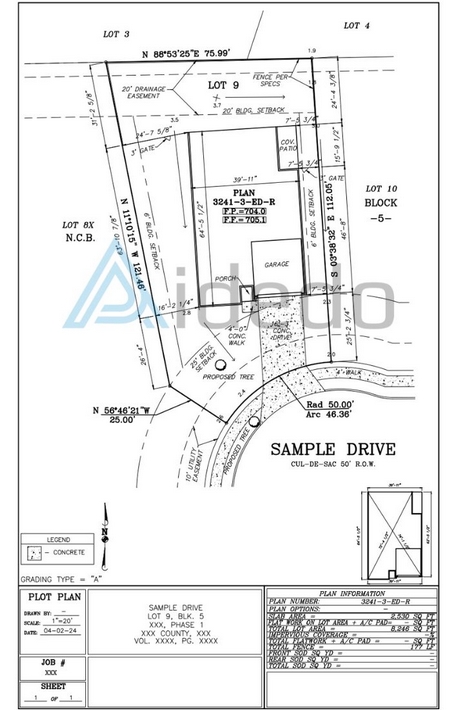

Based on the Rules and Restrictions provided by the client, place the house in the correct location on the lot. Next, label all required information, such as: FP, FF, Plan information, Bearings & distances, Setbacks, Easements, Driveway hatch pattern and any other details as specified by the client. Finally, review, print, and deliver the completed plot plan to the client.

Pricing model for Plot Plan Survey Drafting Service applied at Aidedo

At Aidedo, for Plot Plan Survey Drafting Services as well as other technical solutions, we flexibly apply two different pricing models to meet the specific needs of each client:

• Real-time cost control based on actual working hours

We offer a flexible pay-as-you-go model based on actual working hours, ensuring you only pay for the true value you receive. All working hours are transparently recorded, allowing you to tightly manage your budget and avoid unnecessary extra costs. Notably, Aidedo provides a specialized internal platform where clients can visually track work progress, review actual time spent, and access full project reports. This is the optimal solution for projects with changing scopes, in expansion phases, or requiring maximum flexibility in execution.

• Fixed-price quotes based on specific work items

For projects where upfront cost clarity is a top priority for approval or budget planning, Aidedo’s fixed-quote model is the ideal choice. We thoroughly analyze your specific requirements and then provide a detailed quotation along with a transparent implementation plan. This gives you full visibility into every aspect of the project and peace of mind throughout the process.

No matter which engagement model you choose, Aidedo commits to charging no fees if we fail to meet the agreed deadlines or do not fulfill the established project requirements. Even more importantly, to give you full confidence in our capabilities, your first project with Aidedo will be delivered completely free of charge.

If you Still wondering about the exact cost for your project? Simply send your request to contact@aidedo.com or fill out the contact form below. The Aidedo team will respond with a detailed, fixed-price quotation within 1 to 2 hours, and no later than 12 hours, guaranteed with no hidden or additional charges during implementation.

Client feedback

Other services Aidedo provides

In addition to drafting final survey drawings, Aidedo also provides many other land survey drafting services to meet all of our clients’ surveying needs, such as:

The process of working with Aidedo

Stage 1: Submit request information

To get started, please send your project information via email to contact@aidedo.com or use the online form at the bottom of this page. Providing detailed information from the beginning will help our team clearly understand your needs and direction, allowing us to quickly propose the most suitable solution.

Stage 2: Online technical consultation

Once we receive your request, we will proactively schedule an online meeting through popular platforms such as Google Meet, Zoom, Microsoft Teams, or any tool you prefer. The main goal of this session is to clarify all aspects of the project, from scope of work, pricing, to the collaboration method and detailed implementation timeline. At the same time, we will present similar projects we have completed, address any questions you may have, and demonstrate Aidedo’s real-world capabilities. This is also an opportunity for both sides to connect directly before formal cooperation begins, showcasing professionalism and building a strong foundation together.

Stage 3: Free Trial project experience

Once everything has been agreed upon, Aidedo will launch a free trial project for you to experience. During this phase, we will execute the work with the same quality and standardized process as a paid project, giving you a realistic basis to evaluate before making a long-term decision. In cases where time is of the essence, we can proceed with the official project right after the consultation. Most importantly, regardless of the format, you always have the right not to make any payment if the results do not meet your expectations.

In summary, Aidedo is not just a technical service provider. We offer Land Survey companies a true solution to optimize operations, shorten turnaround times, and maintain quality control in every drawing. With outstanding delivery speed, flexible collaboration, and a deep bench of technical personnel, the Plot Plan Survey Drafting Service at Aidedo is the ideal choice for companies that require both flexibility and precision where client interests are always a top priority, backed by strict data confidentiality policies.

Send your request to contact@aidedo.com or fill out the registration form below to receive consultation, a quotation, and a professional, prompt trial experience with the Aidedo team.

GET STARTED WITH A FREE TRIAL

Please fill out the form and we'll be in touch within 12 hours!

SEND MESSAGE
